Track Bolts
High tensile track link bolts for excavator and bulldozer undercarriage
Product Overview

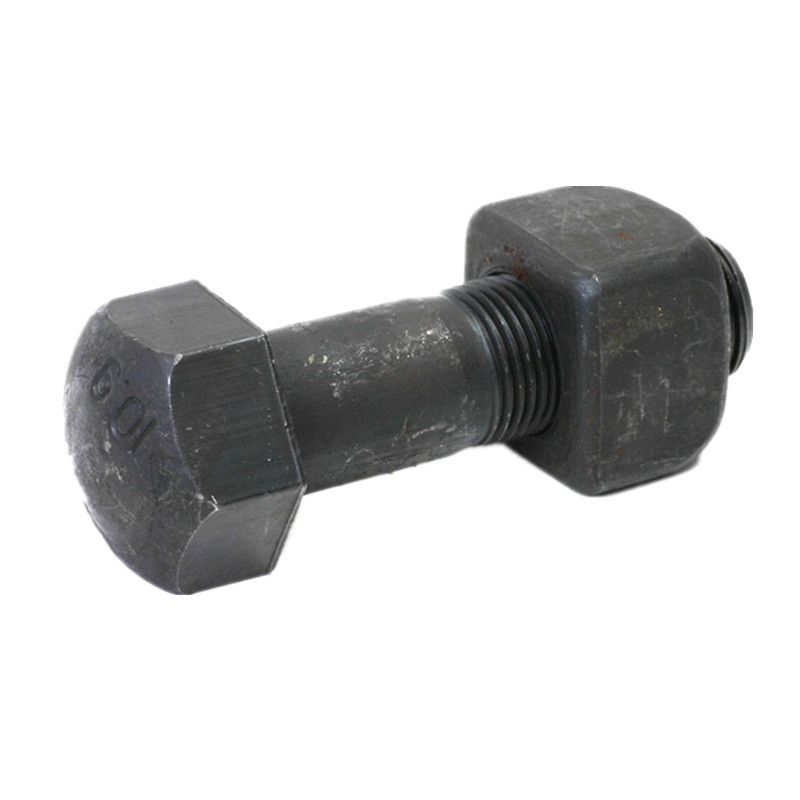

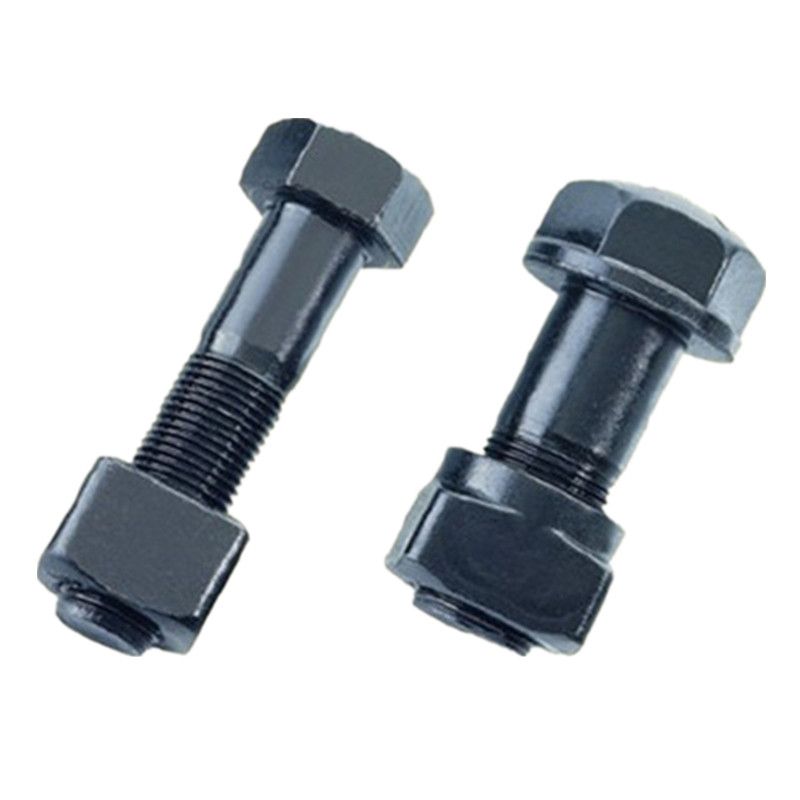

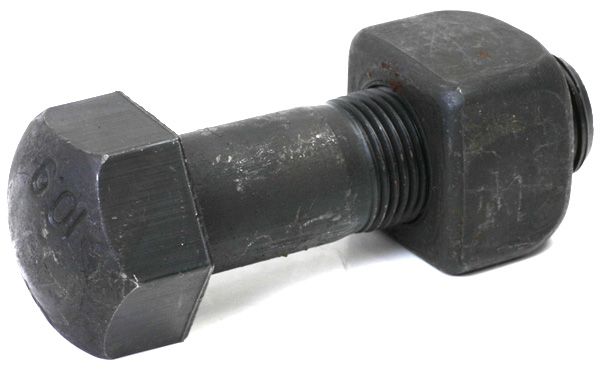

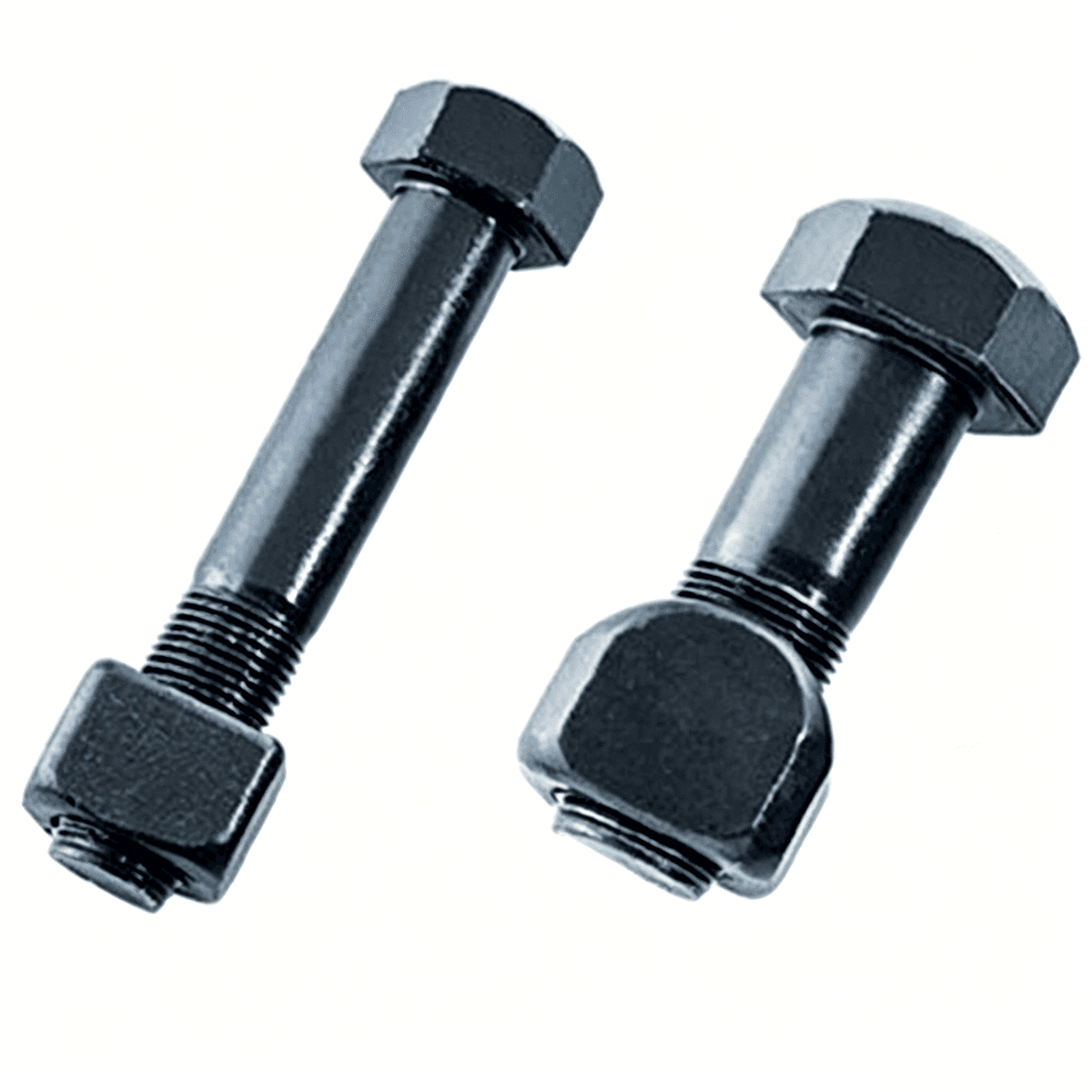

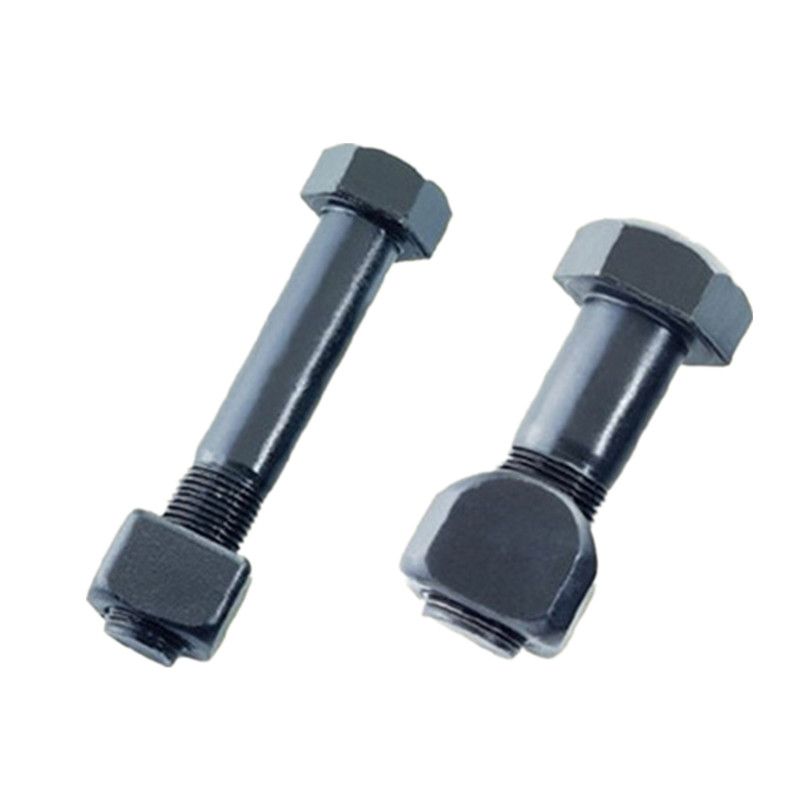

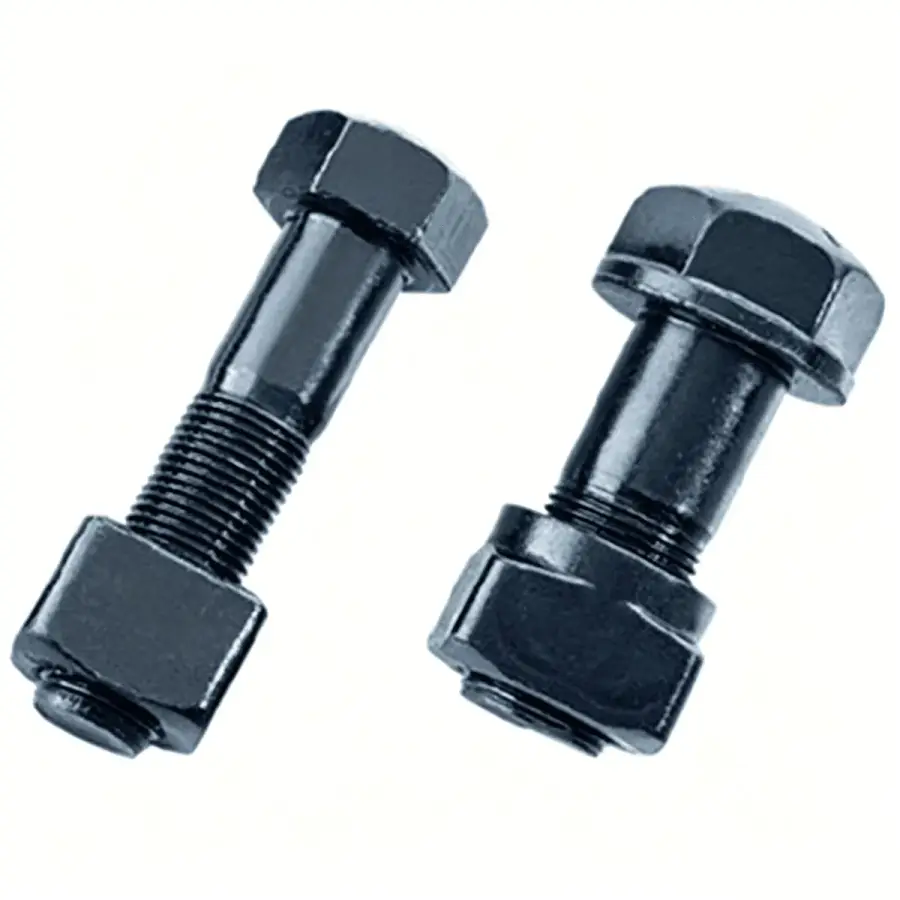

Track Bolts
Track link bolts are critical fasteners for excavator and bulldozer undercarriage systems. Our track bolts are manufactured from premium alloy steel with heat treatment to Grade 10.9/12.9, designed to withstand extreme loads and harsh operating conditions.
M14–M30 Grade 10.9/12.9 CAT & Komatsu Alloy Steel 42CrMo
Specifications
Key attributes
thread type
Metric & UNC/UNF, M14–M30
strength grade
10.9, 12.9
material
Alloy Steel 42CrMo, 40Cr
surface treatment
Black, Zinc Plating, Trivalent Zinc Plating
compatible brands
CAT, Komatsu, Hitachi, Kobelco, Volvo, JCB
application
Track links, Track shoes, Sprockets, Rollers
Track Bolt Specifications
| Description | STYLE | Unit | Net W.T.Kg/Unit | Qty./Ctn. | Net W.T.Kgs/Ctn. | OEM No. | Size For Nut | |
|---|---|---|---|---|---|---|---|---|
| Bolt | Nut | |||||||
| M14X1.5X40 | A | a | Set | 0.128 | 200 | 26 | ||
| M14X1.5X48 | A | a | Set | 0.128 | 200 | 26 | 110-32-11411/01803-01415 | |
| M16X1.5X48 | A | a | Set | 0.176 | 160 | 28 | ||
| M16X1.5X54 | A | a | Set | 0.180 | 140 | 25 | ||
| M16X1.5X57 | A | b | Set | 0.196 | 140 | 27 | 130-32-05001 | |
| M18X1.5X54 | A | a | Set | 0.240 | 100 | 24 | ||
| M18X1.5X55F | B | a | Set | 0.240 | 100 | 24 | ||
| M18X1.5X57 | A | a | Set | 0.246 | 100 | 25 | 2420P1513/2420T4443 | M18X1.5X22 |
| M18X1.5X57 | A | a | Set | 0.246 | 100 | 25 | 205-32-51210 | |
| M18X1.5X57 | A | b | Set | 0.246 | 100 | 25 | 135-34-11211 | |
| M18X1.5X58 | A | a | Set | 0.242 | 100 | 24 | ||
| M19X1.5X60 | A | b | Set | 0.310 | 80 | 25 | 150-32-21321 | |
| M19X1.5X65 | A | b | Set | 0.320 | 80 | 26 | 156-32-11210 | |
| M20X1.5X55 | A | a | Set | 0.310 | 80 | 25 | 14X-32-11210/154-32-11230 | |
| M20X1.5X56 | A | a | Set | 0.320 | 80 | 26 | ||
| M20X1.5X56F | D | a | Set | 0.286 | 80 | 23 | 20Y-32-11210/154-32-11230 | |
| M20X1.5X60 | Set | 0.320 | 80 | 26 | 2420Z1292/2420Z1293 | M20X1.5X27.5 | ||
| M20X1.5X60 | A | b | Set | 0.330 | 80 | 26 | 201-32-11210 | |
| M20X1.5X63 | A | a | Set | 0.326 | 80 | 26 | ||
| M20X1.5X65 | A | a | Set | 0.328 | 80 | 26 | ||
| M20X1.5X65 | A | b | Set | 0.340 | 80 | 27 | 156-32-21321 | |
| M22X56 | A | b | Set | 0.384 | 80 | 31 | ||
| M22X1.5X72 | A | a | Set | 0.470 | 60 | 28 | ||
| M24X1.5X75 | A | a | Set | 0.570 | 40 | 23 | ||
| M24X1.5X76.2 | A | a | Set | 0.570 | 40 | 23 | 175-32-11210/178-32-11220 | M24X1.5X24 |
| 9/16"-18UNFX1 5/8" | A | a | Set | 0.128 | 200 | 26 | 4K7038/7K2017 | 9/16"-18UNFX3/4" |
| 9/16"-18UNFX1 13/16" | A | a | Set | 200 | T126931 | 9/16"-18UNFX3/4" | ||
| 9/16"-18UNFX1 7/8" | A | a | Set | 0.310 | ||||
| 9/16"-18UNFX1 7/8" | A | a | Set | 200 | R153099 | 9/16"-18UNFX3/4" | ||
| 9/16"-18UNFX1 15/16" | A | a | Set | 0.138 | 200 | 28 | 7H3596/7K2017 | 9/16"-18UNFX3/4" |
| 9/16"-18UNFX2 3/16" | A | a | Set | 160 | 616199C1 | |||
| 9/16"-18UNFX2 1/2" | A | a | Set | 0.156 | 160 | 25 | ||
| 5/8"-18UNFX1 7/8" | A | a | Set | 0.176 | 160 | 28 | ||
| 5/8"-18UNFX2 3/32" | A | a | Set | 0.182 | 140 | 25 | 097282/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX2 3/32" | A | a | Set | 0.182 | 140 | 25 | 7H3597/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX2 1/8" | A | a | Set | 0.182 | 140 | 25 | R27166/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX65 | A | a | Set | 0.200 | 130 | 26 | ||
| 5/8"-18UNFX3" | A | a | Set | 0.210 | 120 | 25 | ||
| 5/8"-18UNFX3 3/8" | A | a | Set | 0.220 | 100 | 22 | 5A4104/1M1408 | 5/8"-18UNFX3/4" |
| 3/4"-16UNFX2 1/8" | A | a | Set | 0.276 | 80 | 22 | ||
| 3/4"-16UNFX2 5/32" | A | a | Set | 0.276 | 80 | 23 | 1S1859/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX2 3/8" | A | a | Set | 80 | 7H3598/1S1860 | 3/4"-16UNFX3/4" | ||
| 3/4"-16UNFX2 13/32" | A | a | Set | 0.296 | 80 | 24 | 6V1792/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX4" | A | a | Set | 0.326 | 60 | 20 | 5A7524/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX4 1/8" | A | Pc. | 0.330 | 60 | 20 | 9S1838 | ||
| 3/4"-16UNFX4 3/8" | A | Pc. | 0.330 | 60 | 20 | 2P9670 | ||
| 7/8"-14UNFX2 21/32" | A | a | Set | 0.430 | 7H3599/2S2190 | |||
| 7/8"-14UNFX2 21/32" | A | a | Set | 0.424 | 60 | 25 | 7H3599/2S2140 | |
| 1"-14UNSX3" | A | a | Set | 0.656 | 9M7445/1S6421 | |||
| 1"-14UNSX3 1/2" | A | a | Set | 0.780 | 30 | 23 | 9M7445/1S6421 | |
Notes
| Mark: | 170 |
|---|---|
| Carton Size: | 33X19X12cm |
| Surface Treatment: | Black, Zinc Plating, Trivalent Zinc Plating |
| Machanism Capability: | Bolts:10.9 Class, minimum tensile strength 170,000 psi.Nuts:10 Class, fully hardened and tempered to match bolt strength |
| All packing details are used for reference purposes only. We can't list all of our products in above sheet since we are opening the mold every day. We also produce 12.9 class high tensile fasteners by forging. | |
| Buyer's Inquiry: | Customer can inquiry us by Sizes, OEM Numbers, Drawings and samples. Customer should advice us the quanity per shipment. |
| Delivery: | 35 Days after receive buy's advanced payment or L/C according to quantity and items. |
| Packing: | Cartons on pallets. |
| OEM orders are warm welcome. | |
Need Track Bolts?
Contact us with your specifications and OEM numbers. CAT, Komatsu, and custom sizes available.
