Segment Bolts
Sprocket segment bolts for excavator and bulldozer undercarriage
Product Overview

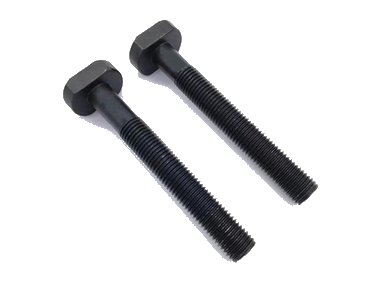

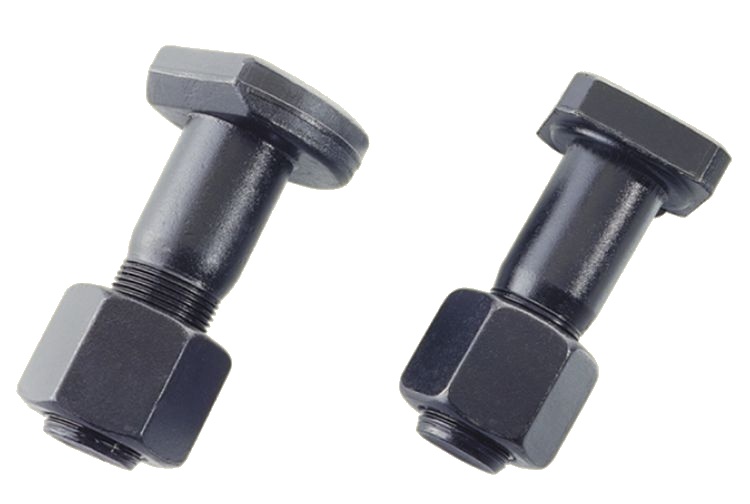

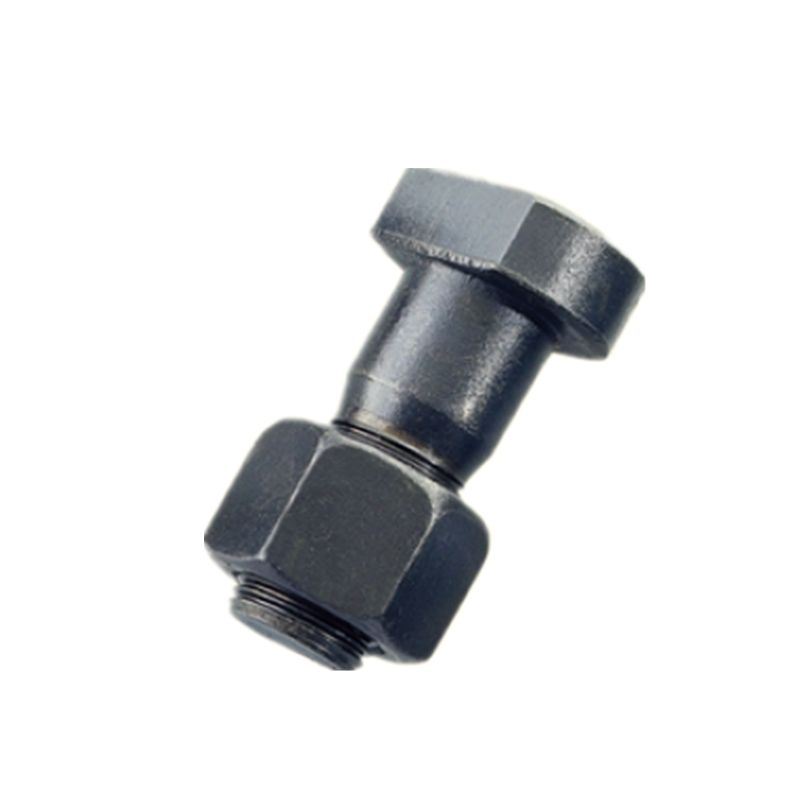

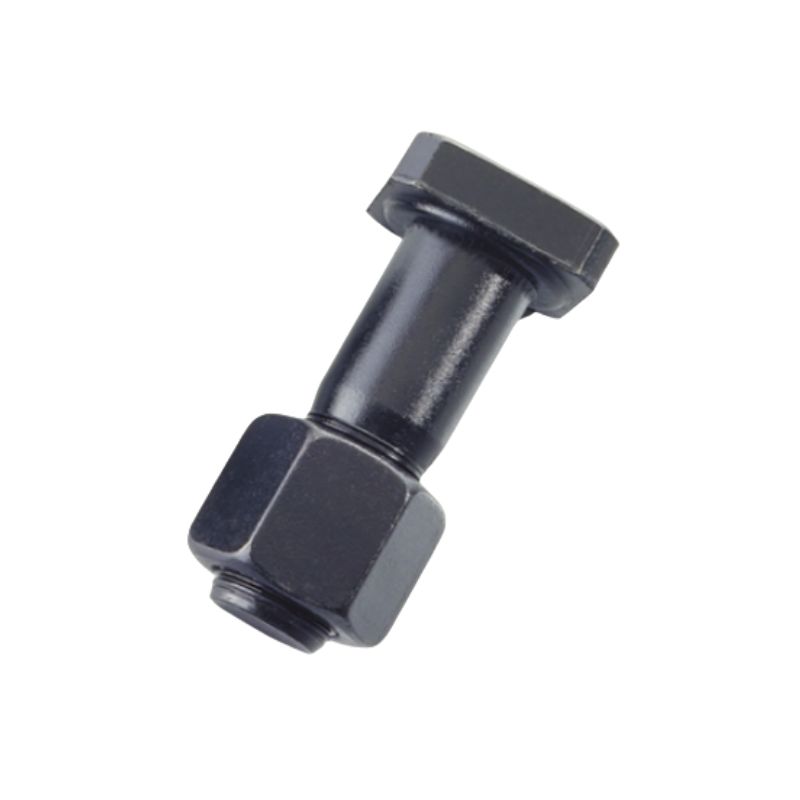

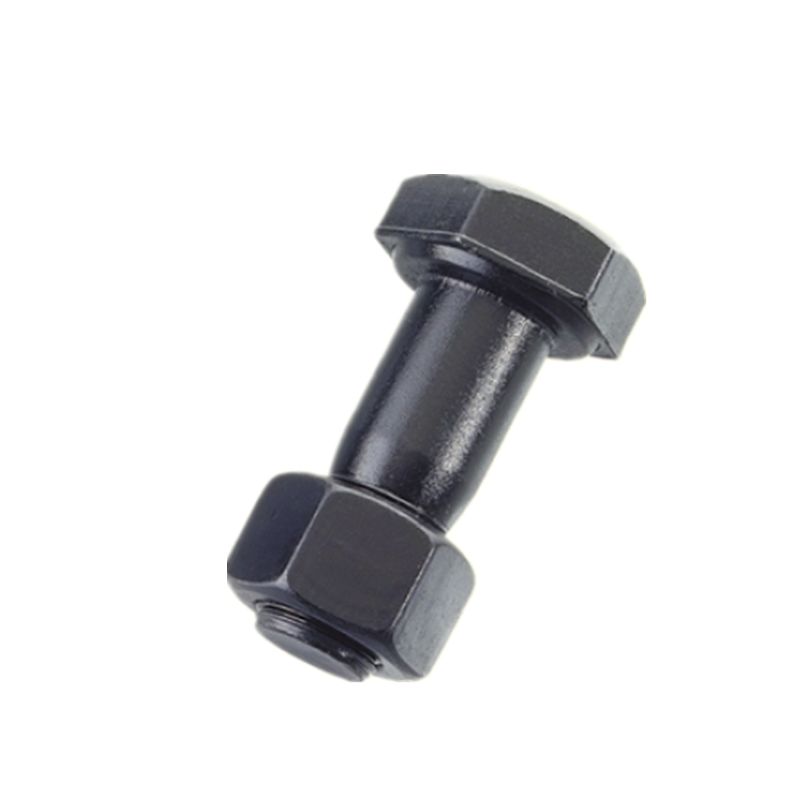

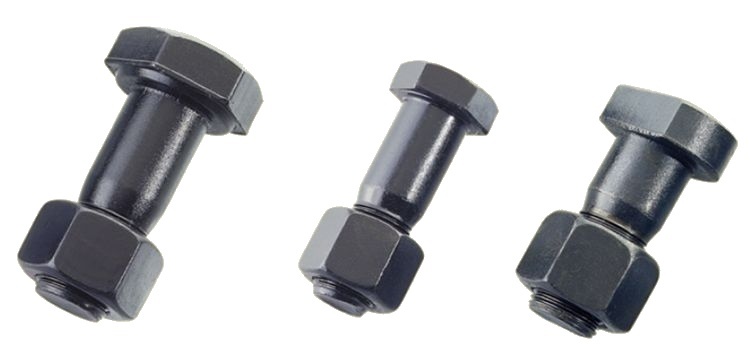

Segment Bolts
Segment bolts are specialized fasteners used to secure sprocket segments to the sprocket hub in tracked machinery. Our segment bolts feature custom thread designs and are manufactured from high-grade alloy steel 42CrMo for maximum durability in demanding applications.
Custom Thread Grade 10.9/12.9 Alloy Steel 42CrMo OEM Service
Specifications
Key attributes
thread type
Custom thread profile per OEM specification
strength grade
10.9, 12.9
material
Alloy Steel 42CrMo, 40Cr
surface treatment
Zinc Plated, Dacromet, Phosphate
compatible brands
CAT, Komatsu, Hitachi, Kobelco, Volvo
application
Sprocket segments, Final drive, Undercarriage
Segment Bolt Specifications
| Description | STYLE | Net W.T.Kg/Set | QuantitySets/Ctn. | Net Wet.Kgs/Ctn. | OEM No. | Size For Nuts | |
|---|---|---|---|---|---|---|---|
| Bolt | Nut | ||||||
| 5/8"-18UNFX1 27/32" | C | b | 0.158 | 180 | 28 | 3S8182/7H 3607 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX1 7/8" | C | b | 0.248 | 100 | 25 | 1171616/1171617 | |
| 5/8"-18UNFX2 7/64" | C | b | 0.159 | 180 | 29 | 6V0937/7H3607 | 5/8"-18UNFX3/4" |
| 3/4"-16UNFX1 5/16" | 180 | 28 | |||||
| 3/4"-16UNFX1 15/16" | F | b | 0.248 | 100 | 25 | 1171617/7H 3608 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX2 5/16" | C | b | 0.272 | 100 | 27 | 3S0336/7H3608 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX2 5/16" | B | b | 0.272 | 100 | 27 | /7H3608 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX2 13/32" | 0.276 | 3S0336/7H3608 | 3/4"-16UNFX3/4" | ||||
| 7/8"-14UNFX65 | 0.452 | 9S2727/7H3609 | |||||
| M18X1.5X61 | G | b | 0.234 | 100 | 23 | 131-27-42230 | |
| M22X1.5X70 | G | b | 0.436 | 50 | 22 | 154-27-12320/01803-02228 | M22X1.5X28 |
| M22X1.5X73 | 0.470 | 154-27-12181/01803-02228 | M22X1.5X28 | ||||
| M24X1.5X80 | GF | b | 0.692 | 35 | 24 | 178-27-11150/01803-02430 | M24X1.5X30 |
| M24X1.5X90 | 0.726 | 195-27-12632/01803-02430 | M24X1.5X30 | ||||
Notes
| Mark: | 170 |
|---|---|
| Carton Size: | 33X19X12cm |
| Surface Treatment: | Black |
| Machanism Capability: | Bolts:10.9 Class, minimum tensile strength 170,000 psi.Nuts:10 Class, fully hardened and tempered to match bolt strength |
| All packing details are used for reference purposes only. We can't list all of our products in above sheet since we are opening the mold every day. We also produce 12.9 class high tensile fasteners by forging. | |
| Buyer's Inquiry: | Customer can inquiry us by Sizes, OEM Numbers, Drawings and samples. Customer should advice us the quanity per shipment. |
| Delivery: | 35 Days after receive buy's advanced payment or L/C according to quantity and items. |
| Packing: | Cartons on pallets. |
| OEM orders are warm welcome. | |
Need Segment Bolts?
Contact us with your specifications. We manufacture to OEM drawings.
